Model Number |

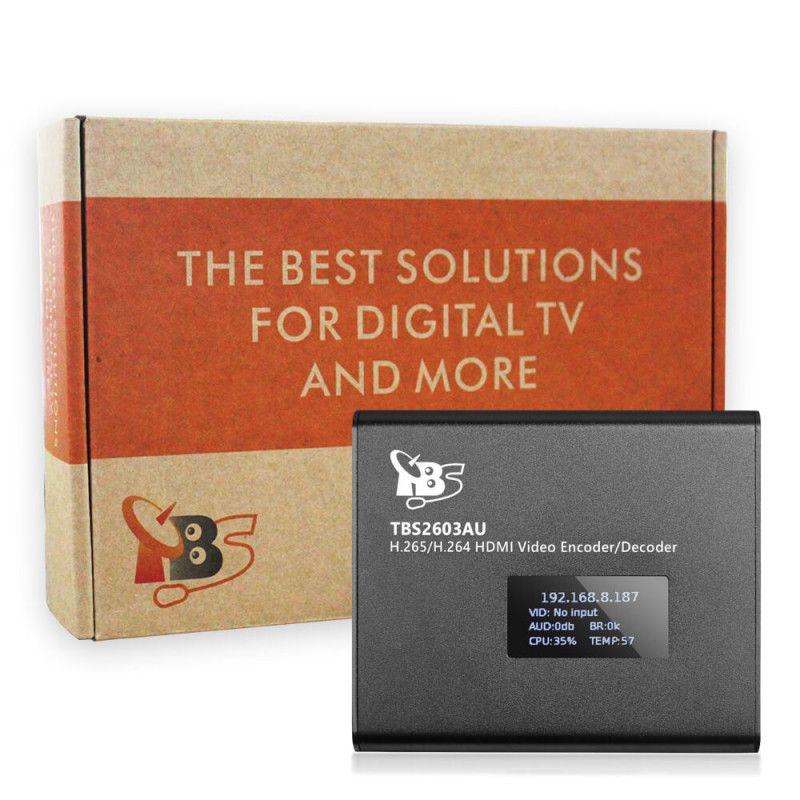

TBS2603au |
Video Input |
1x HDMI 1.4, NDI®|HX streams, 1x USB2.0 from UVC Camera |
Audio Input |
HDMI-embedded, Line-in (Jack 3.5mm) |
OLED display |
IP, input video resolution, CPU utilization, Core temperature |

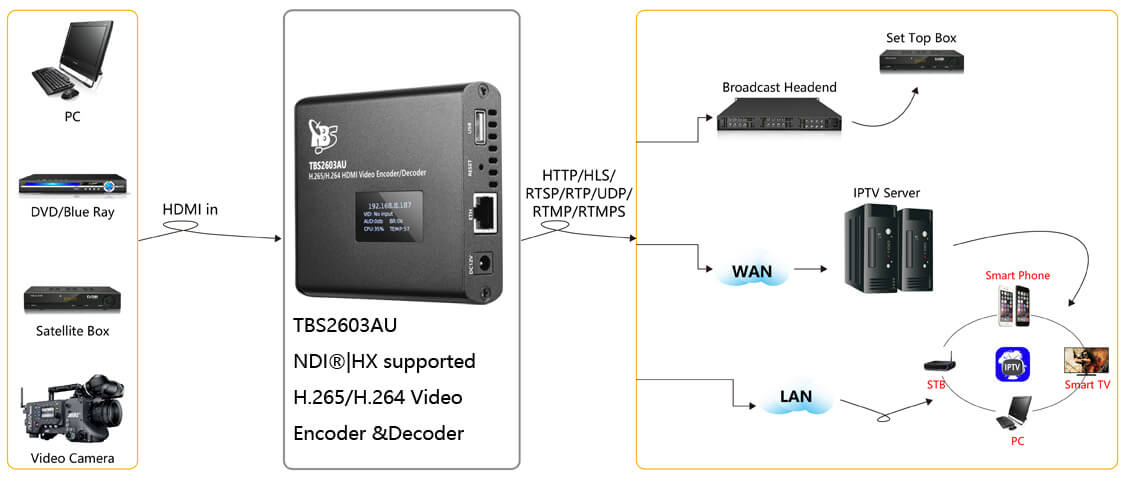

Encode |
Video Input Resolution |
1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ; |
720x576;640x480, and etc. |
Video Output Resolution |
1920x1080P@60fps; 1680x1050; 1280x720; 1024x576; 850x480; |
720x576; 720x480; 640x480; 480x360; 360x240; auto; customized and etc. |
Video Encode |
H264 base line, H264 Main, H264 High, H265 Main |
Video Bit Rate |
0.5Mbps-20Mbps |
Bit Rate Control |
CBR, VBR, AVBR, FIXQP |
Protocol |
NDI®|HX HTTP, HLS, RTSP, RTP/UDP Unicast/Multicast, RTMP(RTMPS) |
Audio Encode |
AAC, MP3, MPEG2, PCMA |
Audio Sampling rate |
16K, 32K, 44.1K, 48K |
Audio Sampling precision |
16 bit |
Audio Bit Rate |
32Kb/s ~ 256Kb/s |
Network Stream IN |
Video |
H264, H265 |
Audio |
MPEG2, MP3, AAC |
Protocol |
NDI®|HX stream,HTTP,HLS,RTSP,RTP,UDP,RTMP(pull) |

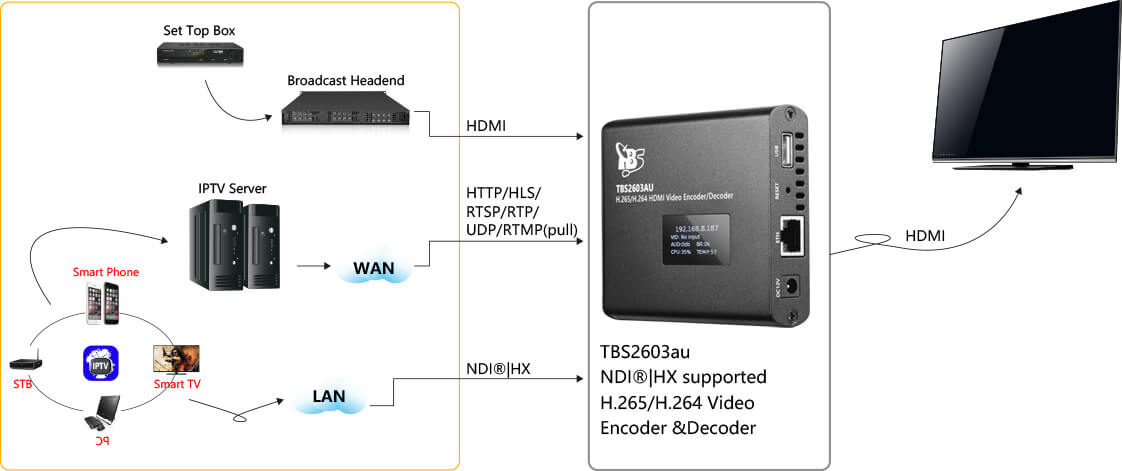

Decode |
Video codec |
H.265 Main Profile, Level 4.1; H.264 Baseline/Main/High Profile Level 4.2 |
Audio codec |
Mpeg2, MP3, AAC |
Source |
HDMI in decode; Network stream decode, NDI decode |
Record |
USB record |
To USB flash disk or USB hard disk |
Format |
*.MP4; *.TS, *.FLV, *.MKV, *.MOV, *.AVI |
System |

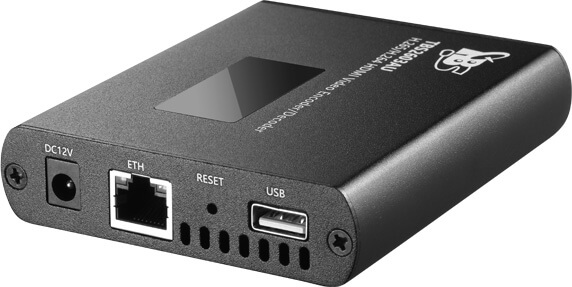

Ethernet / RJ45 |
1000 Base-T Ethernet interface |
Supported System |
Windows XP/VISTA/SERVER/WIN7/WIN10 ; Linux; MAC OS |
Control |

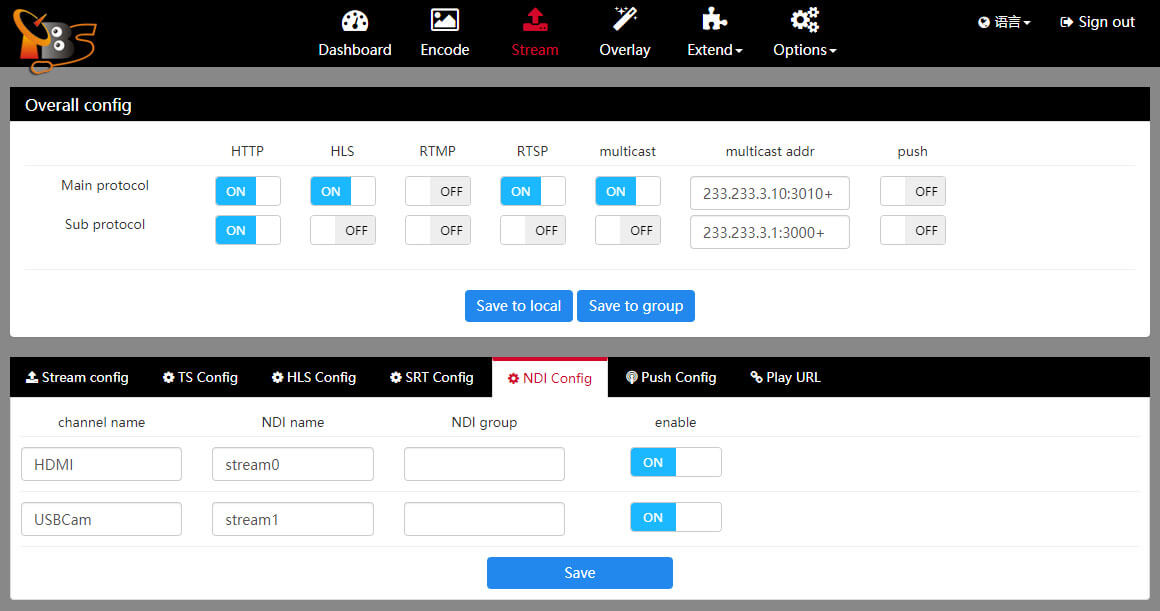

WebUI |
General Spec. |
Dimension |
100 * 60 * 31.5mm |
Power Consumption |
